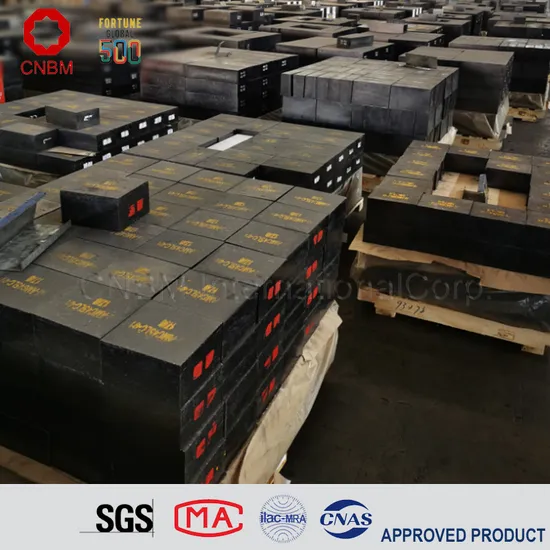

Thermal Insulation Material Magnesium Carbon Bricks
Product Description Magnesia refractory carbon brick is resin-bonded brick made from dead-burned, fused magnesia and gra
Description
Basic Info.
| Model NO. | Metal Zone |
| Feature | Long Time Materials |
| Type | Refractory Material |
| Material | MgO-Carbon Brick |
| Transport Package | Container |
| Specification | MgO-Carbon |
| Trademark | CNBM |
| Origin | China |
| HS Code | 69021000 |
| Production Capacity | 500000 Ton/Year |
Product Description
Product DescriptionMagnesia refractory carbon brick is resin-bonded brick made from dead-burned, fused magnesia and graphite.Magnesia refractory carbon brick has good performance in thermal resistance, corrosion resistance and spalling resistance, mostly used in converters, EAFs, ladles and refining furnaces.
Features
*Higher temperate resistant with good refractoriness *Excellent resistance in slag abrasion *Good thermal shock resistance performance *Lower creep in high temp *Not wet with slag easily
ApplicationsMagnesia carbon refractory brick is mainly used for steelmaking oxygen converter lining, the steel export, high power electric furnace wall hot spots, and the furnace refining furnace lining, sheng steel ladle slag line position and also used for the lining of converter, AC arc furnace, DC electric arc furnace, ladle slag line,etc.* Refractories applied in Converter-Magnesia carbon bricks for big and middle converters in package-project
* Refractories applied in Electric Arc Furance
* Refractories Applied in LF&ladle
Technical Specification
Company InformationCNBM International Corporation (CNBM International) is the most important trading platform of CNBM Group Corporation, a state-owned company under the direct supervision of State-owned Assets Supervision and Administration Commission of the State Council.
CNBM Group is integrated with four business segments: Manufacture, R&D,Sets of equipment and Logistics trading.Refractory and metallurgical products are our main products.CNBM International is highly recognized by its business partners and clients all over the world and has established good business relationship with the customers in over 120 countries and regions all over the world.
Factory&Production Line
Laboratory&InspectionPacking&Shipping Test Report
Customers Visit
Our service
- Any inquiry will be quoted within 48hours
- Exclusive and unique solutions will be provided by our well-experienced senior consultant team
- You can get more information about Chinese market from us
- Timely deliver
- Special discount and protection of sales area will be provided to our distributor
| Item | MZ-97A | MZ-97B | MZ-95A | MZ95B | MZ-93 | MZ-91 | MZ-89 | DMZ98 | DMZ97 | DMZ96 |
| Density(g/cm3)≥ | 2.96 | 2.96 | 2.94 | 2.94 | 2.94 | 850 | 900 | 3.1 | 3.1 | 3 |
| Cold Crushing Strength (Mpa)≥ | 60 | 60 | 60 | 60 | 60 | 60 | 50 | 90 | 90 | 90 |
| Reheating Linear Change(%) | 1650ºC x 2h 0~ -0.2 | 1650ºC x 2h 0~ -0.3 | 1650ºC x 2h 0~ -0.4 | 1650ºC x 2h 0~ -0.6 | - | - | - | |||
| Refractoriness Under Load(ºC)≥ | 1700 | 1700 | 1650 | 1650 | 1620 | 1560 | 1550 | 1700 | 1700 | 1700 |
| Apparent Porosity (%)≤ | 16 | 18 | 16 | 18 | 18 | 18 | 20 | 14 | 14 | 15 |
| MgO(%) | 97.0 | 96.5 | 95.0 | 94.5 | 93.0 | 91.0 | 89.0 | 97.7 | 97.1 | 96.3 |
| SiO2(%) | 1.0 | 2.0 | 2.0 | 2.0 | 3.5 | - | - | 0.58 | 0.97 | 1.20 |
| CaO(%) | - | - | 2.0 | 2.0 | 2.0 | 3.0 | 3.0 | 0.63 | 0.97 | 1.30 |
| Application | Kiln Linning in Iron and Steel, Copper, Lead, Tin and Zinc Industries | The Tap Hole of Steel Furnace; Tap Hole and Slag Line in Non-Ferrous Industry | ||||||||
